Product name： N-800F Laboratory Biological Fluorescent Microscope
- Packaging Details：
- Delivery Time：
- Description：
Excellent fluorescent image with high resolution fluorescent objectives. Protect the light leak with advanced lamp housing. Widely used in venereal disease examination and immuneless diagnosis.
DETAILED
Excellent fluorescent image with high resolution fluorescent objectives.
Protect the light leak with advanced lamp housing.
Widely used in venereal disease examination and immuneless diagnosis.
Features：

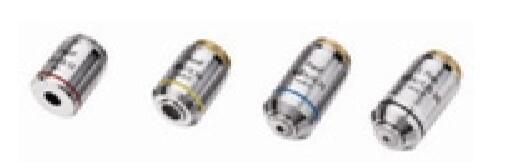

Perfect image with infinite plan fluorescent objective
More stable power supply, digital display and timer
| N-800F | |||||
| Optical System |
Infinite Optical System |
● | |||
| Viewing Head |
Compensation Free Trinocular Head Inclined at 30°,Interpupillary Distance 48-75mm |
● | |||
| Eyepiece |
Extra Wide Field Eyepiece EW10X/22 |
● | |||
| Nosepiece |
Backward Quintuple Nosepiece |
● | |||
| Objective |
Objective Infinite Plan Achromatic Objective |
4X | ● | ||
| 10X | ● | ||||
| 20X | ○ | ||||
| 40X | ● | ||||
| 100X | ● | ||||
| Infinite Plan Fluorescent Obuective |
4X,10X,20X,40X,100X | ○ | |||
| Condenser |
Swing Condenser NA 0.9/0.25 |
● | |||
| Focusing |
Coaxial Coarse & Fine Adjustment,Fine Division 0.001mm |
● | |||
| Stage |
Double Layers Mechanical Stage 185x142/75x56mm |
● | |||
| Photo Attachment |
○ | ||||
| Video Adapter |
○ | ||||
| Kohler Illumination |
External Illumination,Aspherical Collector,Haiogen Lamp6V/30W |
● | |||
| Reflected Light Source |
Excitation |
Dichroic Mirror |
Barrier Filter |
||
| Blue excitation |
BP460-490 |
DM500 |
BA520 |
● | |
| Blue one excitation |
BP460-495 |
DM505 |
BA510-550 |
○ | |
| Green excitation |
BP510-550 |
DM570 |
BA590 |
● | |
| Ultraviolet excitation |
BP330-385 |
DM400 |
BA420 |
○ | |
| Violet excitation |
BP400-410 | DM455 | BA455 | ○ | |
| Lamp |
100W HBO Ultra Hi-voltage Spherical Mercury Lamp |
● | |||
| Protection barrier |
Barrier to Resist the Ultraviolet Light |
● | |||
| Power Supplier |
Power Supplier NFP-1,220V/110V interchangeable,Digital Display |
● | |||
| Immersion Oil |
Fluorescent Free Oil | ● | |||
| Neutral ND25/ND6 Filter |
○ | ||||
| Centering Targe | ○ | ||||
Note: ●（ Standard Outfit ）, ○（ Optional ）
