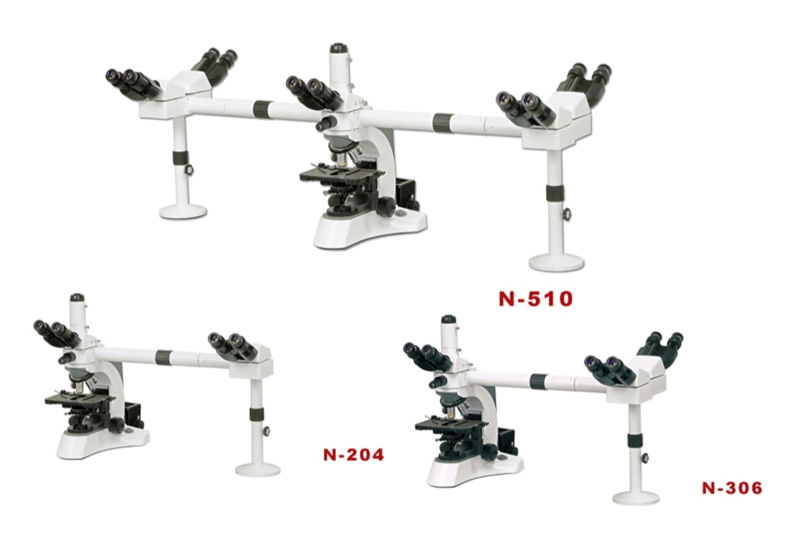

Product name： N-306 Series Multi-viewing Microscope
- Packaging Details：
- Delivery Time：
- Description：
Excellent fluorescent image with high resolution fluorescent objectives. Protect the light leak with advanced lamp housing. Widely used in venereal disease examination and immuneless Diagnosis.
DETAILED
Excellent fluorescent image with high resolution fluorescent objectives.
Protect the light leak with advanced lamp housing.
Widely used in venereal disease examination and immuneless Diagnosis.
| N-510 | N-306 | N-204 | |||||
| Optical System | Infinite Optical System | ● | ● | ● | |||
| Viewing Head | Compensation Free Trinocular Head,Inclined at 30°,360°Rotatable,Interpupilary Distance 48-75mm | 1PC | 1PC | 1PC | |||
| Compensation Free Binocular Head,Inclined at 30°,360°Rotatable,Interpupilary Distance 48-75mm | 4PCS | 2PCS | 1PC | ||||
| Eyepiece | Extra Wide Field Eyepiece EW10X/20 | 10PCS | 6PCS | 4PCS | |||
| Nosepiece | Inverse Quintuple Nosepiece | ● | ● | ● | |||
| Objective | Infinite Plan Achromatic Objective 4X,10X,40X,100X | ● | ● | ● | |||
| Condenser | Swing Condenser N.A.0.9/0.25 | ● | ● | ● | |||
| Focusing | Coaxial Coarse & Fine Focus Adjustment,Fine Division 0.002mm | ● | ● | ● | |||
| Stage | Double Layers Mechanical Stage 185x142mm,Moving Range 75x55mm | ● | ● | ● | |||
| Kohler | External Illumination,Halogen Lamp 12V/50W | ● | ● | ● | |||
| Illumination | Green LED Pointer,Brightness Adjustable | ● | ● | ● | |||
| Dual Color Pointer,Brightness Adjustable | ○ | ○ | ○ | ||||
| Pointer | ○ | ○ | ○ | ||||
| Photo Attachment | C Mount 1X | ○ | ○ | ○ | |||
| Video Adapter | C Mount 0.5X | ○ | ○ | ○ | |||
Note: ●（ Standard Outfit ）, ○（ Optional ）
