Product name： Multi-purpose biological microscope N-117M
- Packaging Details：
- Delivery Time：
- Description：
New machining facility and advanced alignment technology Complete functions and outfit of binocular microscope Comfortable operation with updated and ergonomic design
DETAILED

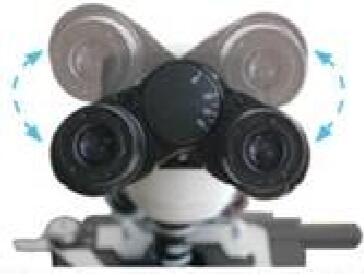

Comfortable observation with adjustable eyepoint height and interpupillary distance
| N-117M | ||
| Viewing Head | Compensation Free Binocular Head,Inclined at 30°,Interpupilary Distance 48-75mm |
● |
| Compensation Free Trinocular Head,Inclined at 30°,Interpupilary Distance 55-75mm | ○ | |
| Eyepiece | WF 10x/18 | ● |
| P16x/11 | ○ | |
| Objective | Achromatic Objective 4x,10x,40x,100x | ● |
| Nosepiece | Backwark Quadruple Nosepiece | ● |
| Stage | Double Layer Mechanical Stage 132x142mm/75x40mm | ● |
| Focusing | Coaxial Coarse & Fine Adjustment,Moving Range 24mm,fine Division 0.004mm | ● |
| Condenser | Abbe NA 1.20 with Iris Diaphram & Filter | ● |
| Illumination | LED 3W, Brightness Adjustable | ● |
| Halogen Lamp 6V/20W,Brightness Adjustable | ● | |
| Phase Contrast Kit | ○ | |
| Dark Field Attachment | ○ | |
| Polarization Attachment | ○ |
Note: ●（ Standard Outfit ）, ○（ Optional ）
