Product name： Multi-purpose biological microscope 107 series XSZ-N107CCD
- Packaging Details：
- Delivery Time：
- Description：
XSZ-N107 series microscope is improved on the basis of XSZ-107BN series such as adding Antimould device and some decoration. It looks nice and much modern.
DETAILED

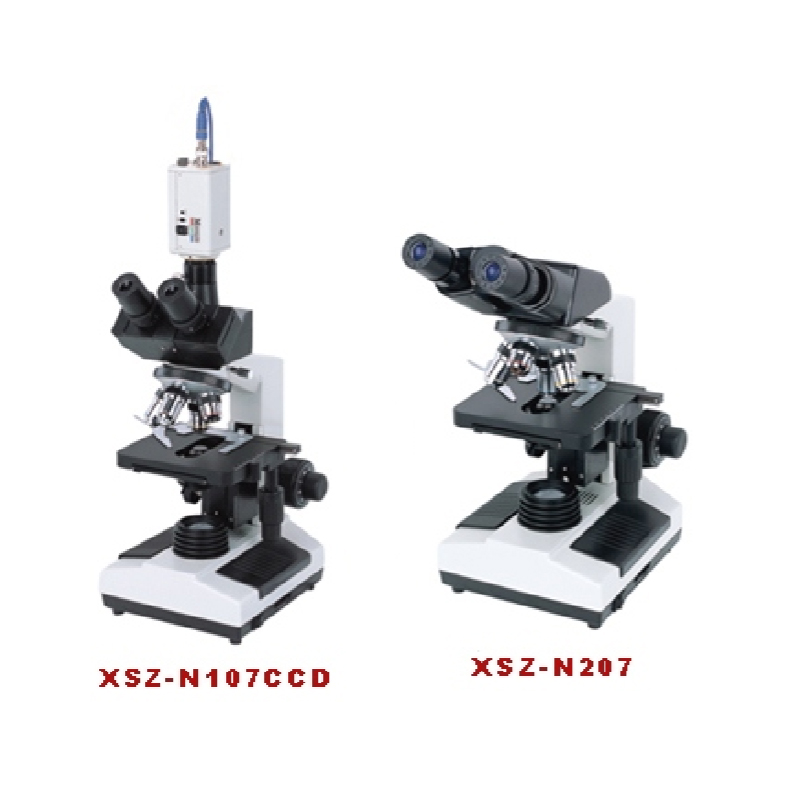

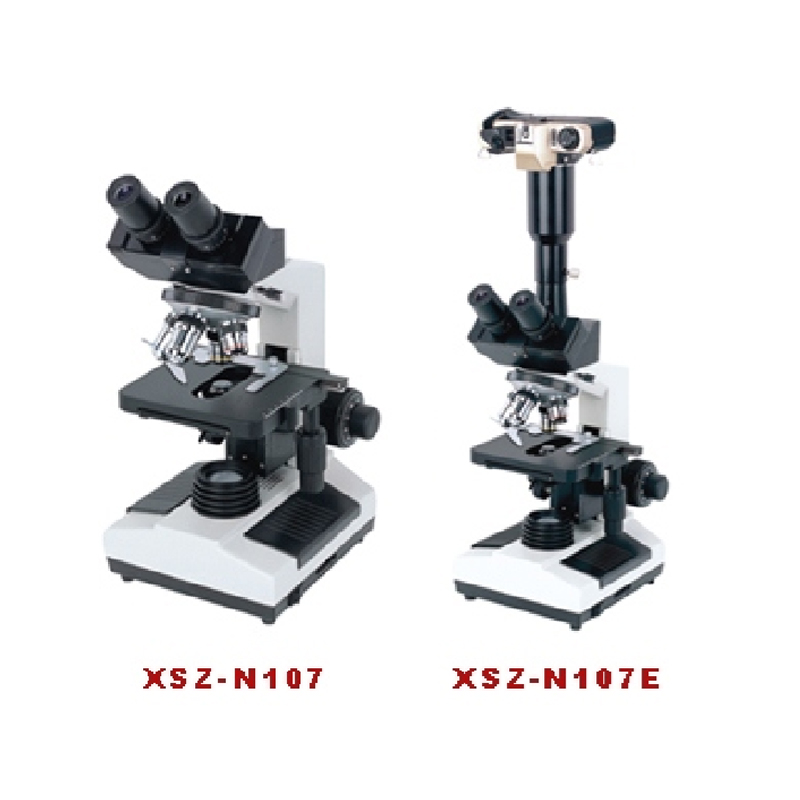

| XSZ-N107 | XSZ-N207 | XSZ-N107E | XSZ-N107CCD | ||
| Viewing Head | Monocular Head Inclined 45° | ||||
| Sliding Binocular Head Inclined at 45°,360°Rotatable ;Anti-mould | ● | ||||
| Compensation Free Binocular Head Inclined at 30°,360°Rotatable; Anti-mould | ● | ||||
| Trinocualr Head for Photography | ● | ||||
| Trinocular Head for Video Camera(C Mount) | ● | ||||
| Eyepiece | Wide Field Eyepiece WF 10X,P16X | ● | ● | ● | ● |
| Objective | Achromatic Objective 4x,10x,40x(S),100x(S,Oil) | ● | ● | ● | ● |
| Nosepiece | Quadruple Nosepiece | ● | ● | ● | ● |
| Stage | Double Layer Mechanical Stage 140x140mm/75x50mm | ● | ● | ● | ● |
| Focusing | Coaxial Coarse&Fine Adjustment,Moving Range 28mm,Fine Division 0.002mm | ● | ● | ● | ● |
| Condenser | Abbe NA 1.25 with Iris Diaphragm&Filter | ● | ● | ● | ● |
| Dark Field Condenser NA 0.9(Dry) | ○ | ○ | ○ | ○ | |
| Dark Field Condenser(Oil)NA1.25-1.36 | ○ | ○ | ○ | ○ | |
| Illumination | Built-in Illumination,Halogen Lamp 6V/20W | ● | ● | ● | ● |
| Plan-concave Mirror | ● | ● | ● | ● | |
| Kohler lighting fixtures | ○ | ○ | ○ | ○ |
Note: ●Standard Outfit, ○Optional
