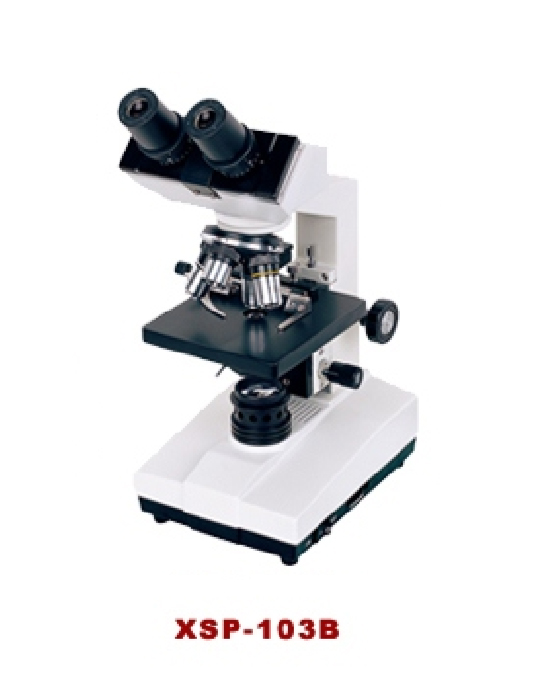

Product name： XSP-103B Series Biological Microscope
- Packaging Details：
- Delivery Time：
- Description：
DETAILED
| XSP-103A | XSP-103C | XSP-103B | ||
| Viewing Head | Monocular Head, Inclined at 45° | ● | ● | |
| Sliding Binocular Head,Inclined at 45° | ● | |||
| Seidentopf Type Binocular Viewing Head, Inclined at 30° | ○ | |||
| Teaching Head | ○ | ○ | ○ | |
| Eyepiece | Wide Field Eyepiece WF10x/18 | ● | ● | ● |
| Wide Field Eyepiece WF16x/11 | ○ | ○ | ○ | |
| Objective | Achromatic 4x,10x,40x | ● | ● | |
| Achromatic 4x,10x,40x,100x | ● | |||
| Nosepiece | Triple Nosepiece | ● | ● | |
| Quadruple Nosepiece | ● | |||
| Stage | Plain Stage with Slide Clips,120x130mm | ● | ● | |
| Attachable Mechanical Stage 110x120mm/60x30mm | ● | |||
| Condenser | Single Lens with Disc Diaphragm | ● | ||
| Abbe NA125 with Iris Diaphragm and Filter | ● | ● | ||
| Illumination system | 15W Halogen Lamp | ● | ● | |
| Halogen Lamp 6V/20W | ● | |||
| Plan-concave Mirror | ● | ● | ● | |
| Filter | Blue Filter | ● | ● | |
| Green Filter | ● | ● | ||
| Carrying Case | PVC Carrying Case | ○ | ○ | ○ |
Note: ●Standard Outfit, ○Optional
