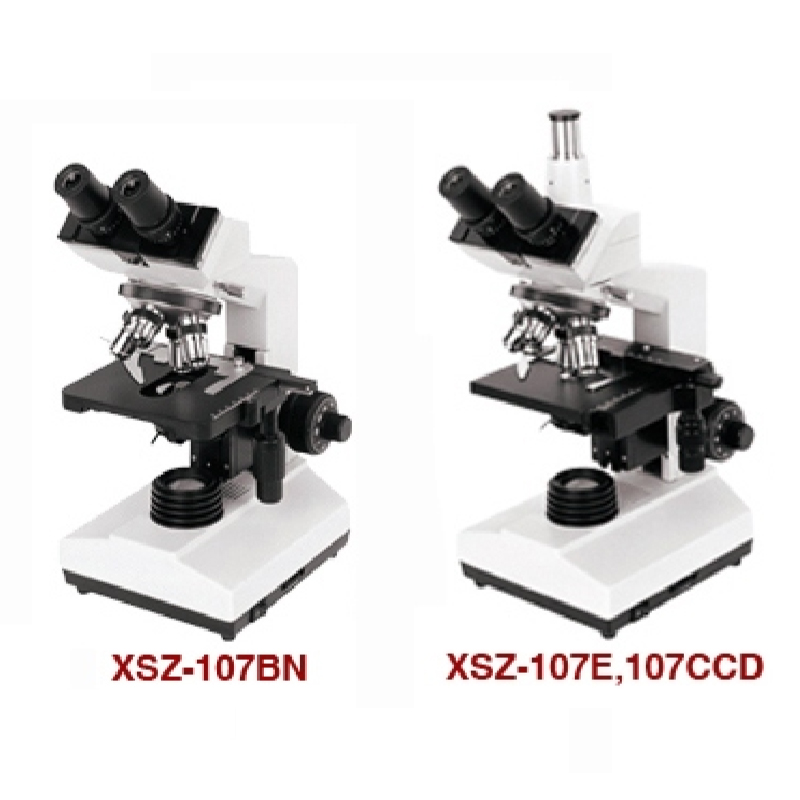

Product name： Multi-purpose biological microscope 107 series XSZ-107BN
- Packaging Details：Available in multiple package
- Delivery Time： Shipped in 20 days after payment
- Description：
DETAILED
| XSZ-107BN | XSZ-107E | XSZ-107CCD | ||
| Viewing Head | Sliding Binocular Head Inclined at 45°,360°Rotatable | ● | ||
| Sliding Trinocular Head for Photography | ● | |||
| Sliding Trinocular Head for Video Camera( C Mount) | ● | |||
| Eyepiece | Wide Field Eyepiece WF10x/18 | ● | ● | ● |
| Wide Field Eyepiece WF 16x/11 | ● | ● | ● | |
| Objective | Achromatic Objective 4x,10x,40x,100x | ● | ● | ● |
| Achromatic Objective 20x,60x | ○ | ○ | ○ | |
| Plan Achromatic Objective 4x,10x,20x,40x,60x,100x | ○ | ○ | ○ | |
| Nosepiece | Quadruple Nosepiece | ● | ● | ● |
| Stage | Single Layer Mechanical Stage 140x140mm/75x50mm | ● | ● | ● |
| Condenser | Abbe NA1.25 with Iris Diaphragm&Filter | ● | ● | ● |
| Illumination | Built-in Illumination,Halogen Lamp 6V/20W | ● | ● | ● |
| Plan-concave Mirror | ● | ● | ● | |
| Kohler Illumination | ○ | ○ | ○ | |
| Photo Attachment | ○ | |||
| Video Adapter | C Mount 1x | ○ | ● | |
| C Mount 0.5x | ○ | ○ | ||
| Filter | Blue Filter | ● | ● | ● |
| Green Filter | ● | ● | ● | |
| Polarization Set | Simple Polarization Set | ○ | ○ | ○ |
| Phase Contrast Kit | Simple phase contrast kit | ○ | ○ | ○ |
| Simple phase contrast kit | ○ | ○ | ○ | |
| Turret phase contrast kit | ○ | ○ | ○ | |
| Dark Field Attachment | Dark Field Attachment(Dry) NA0.9 | ○ | ○ | ○ |
| Dark Field Attachment(Oil) NA1.25-1.36 | ○ | ○ | ○ |
Note: ●Standard Outfit, ○Optional
